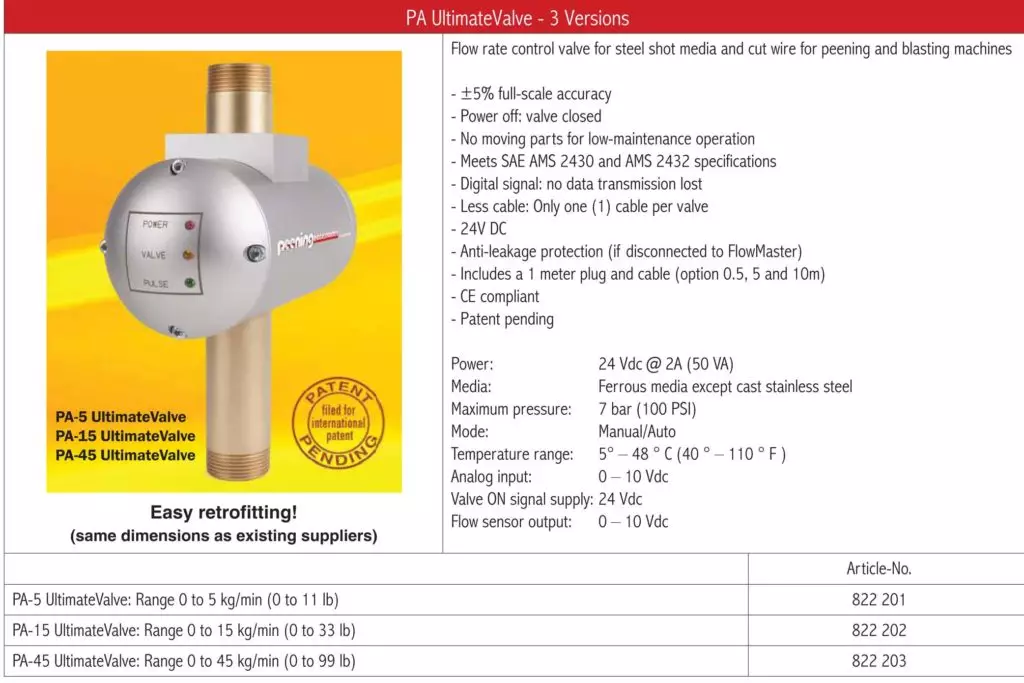

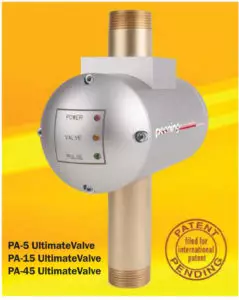

Flow rate control valve for steel shot media and cut wire for peening and blasting machines
- _+ 5% full-scale accuracy
- Power off: valve closed
- No moving parts for low-maintenance operation
- Meets SAE AMS 2430 and AMS2432 specifications
- Digital signal: no data transmission lost
- Less cable: Only one (1) cable per valve
- 24V DC
- Anti-leakage protection (if disconnected to FlowMaster)
- Includes a 1 meter plug and cable (option 0.5, 5 and 10m)
- CE compliant
- Patent pending
Power: 24 Vdc @ 2A (50 VA)
Media: Ferrous media except cast stainless steel
Maximum pressure: 7 bar (100 PSI)
Mode: Manual/Auto
Temperature range: 5^0 – 48^0 (40^0 -110^0F)
Analog input: 0-10 Vdc
| Article- no. | |
|---|---|
| PA-5 UltimateValve Range 0 to 5 kg/min (0to11Ib) | 822 201 |
| PA-15 UltimateValve Range 0 to 15 kg/min (0 to 33Ib) | 822 202 |
| PA-45 UltimateValve Range 0 to 45 kg/min (0 to 9 Ib) | 822 203 |
Valve ON signal supply: 24Vdc
Flow sensor output : 0-10 Vdc/h2>
Flow sensor output : 0-10 Vdc/h2>
