TECHNOPEEN

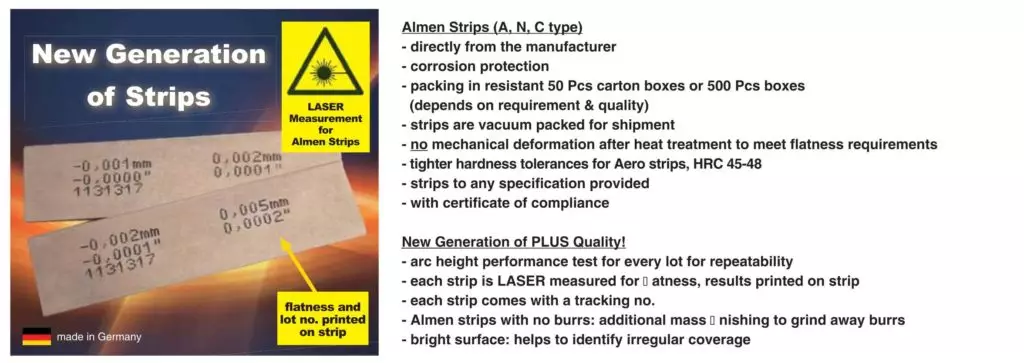

Almen Strips (A,N,C type)

Almen Strips (A,N,C type)

directly from the manufacturer
corrosion protection
packing in resistant 50 Pcs carton boxes or 500 Pcs boxes (depends on requirement & quality)
strips are vaccum packed for shipment
no mechanical deformation after heat treatment to meet flatness requirements
tighter hardness tolerance for Aero strips, HRC 45-48
strips to any specification provided
with certificate of compliance

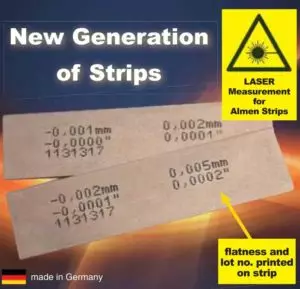

New Generation of PLUS Quality!

arc height performance test for every lot for repeatability
each strip is LASER measured for results printed on strip
each strip comes with a tracking no.
Almen strips with no burrs: additional mass nishing to grind away burrs
Bright surface: helps to identify irregular coverage

	Minium order	Ref.No.
A Strip AERO PLUS _+0.013mm, HRC 45-48, SAE J442, SAE AMS 2430, SAE AMS 2432	100 (50/box)	200 101
A Strip INDUSTRIAL PLUS_+0.025mm, HRC 44-50(*), SAE AMS 2430, SAE J442	100 (50/box)	200 202
A Strip INDUSTRIAL PLUS BULK _+0.025mm, HRC 44-50(*), SAE AMS 2430, SAE J442	4’000 (50/box)	200 303
N Strip AERO PLUS_+0.013mm, HRC 45-48, , SAE J442, SAE AMS 2430, SAE AMS 2432	100 (50/box)	300 101
N Strip INDUSTRIAL PLUS_+0.025mm, HRC 44-50(*), SAE AMS 2430, SAE J442	100 (50/box)	300 202
N Strip c	4’000 (50/box)	300 303
C Strip AERO PLUS_+0.013mm, HRC 45-48, , SAE J442, SAE AMS 2430, SAE AMS 2432	50 (25/box)	400 101
C Strip INDUSTRIAL PLUS_+0.038mm, HRC 44-50(*), SAE AMS 2430, SAE J442	50 (25/box)	400 202
C Strip INDUSTRIAL PLUS_+0.038mm, HRC 44-50(*), SAE AMS 2430, SAE J442	2’000 (250/box)	400 303

	Dimension	Shipping weight
A Strip	L=76.1mm W=18.95mm D=0.785mm	1000 Pcs 15.3 kg
N Strip	L=76.1mm W=18.95mm D=0.785mm	1000 Pcs 9.5 kg
C STRIP	L=76.1mm W=18.95mm D=2.385mm	1000 Pcs 28.5 kg

(*): HRC 44-50=HRA 72.5-76.0
