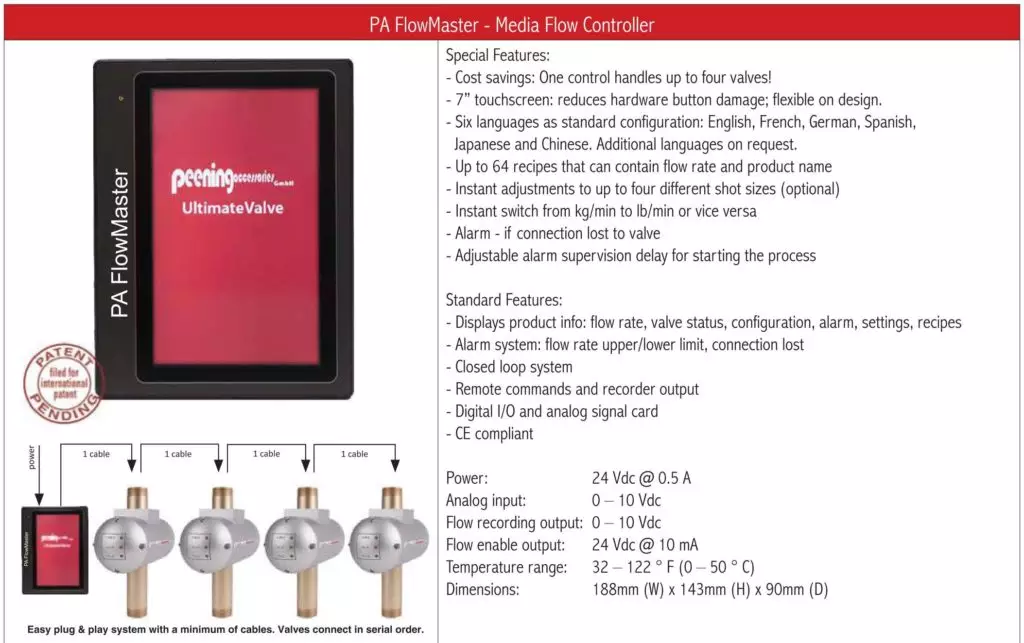

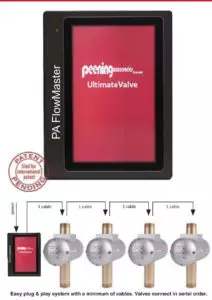

Special Features:
-
Cost savings: One control handles up to four valves!
-
7” touchscreen: reduces hardware button damage; flexible on design.
-
Six languages as standard configuration: English, French, German, Spanish, Japanese and Chinese. Additional languages on request.
-
Up to 64 recipes that can contain flow rate and product name.
-
Instant adjustments to up to four different shot sizes (optional)
-
Instant switch from kg/min to Ib/min or vice versa
-
Alarm- if connection lost to valve
-
Adjustable alarm supervision delay for starting the process
Standard Features:
-
Displays product info: flow rate, valve status, configuration, alarm settings, recipes
-
Alarm system: flow rate upper/ lower limit, connection lost
-
Closed loop system
-
Remote commands and recorder output
-
Digital I/O and analog signal card
-
CE compliant
Power: 24 Vdc @ 0.5A
Analog input: 0-10 Vdc
Flow recording output: 0-10 Vdc
Flow enable output: 24 Vdc @ 10ma
Temperature range: 32-122^0 f(0-50^0C)
Dimensions: 188mm (W) x 143mm(h) x 90mm (D)
