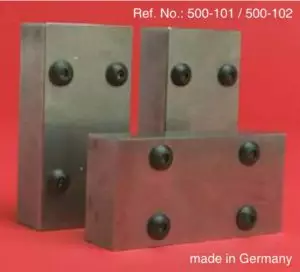

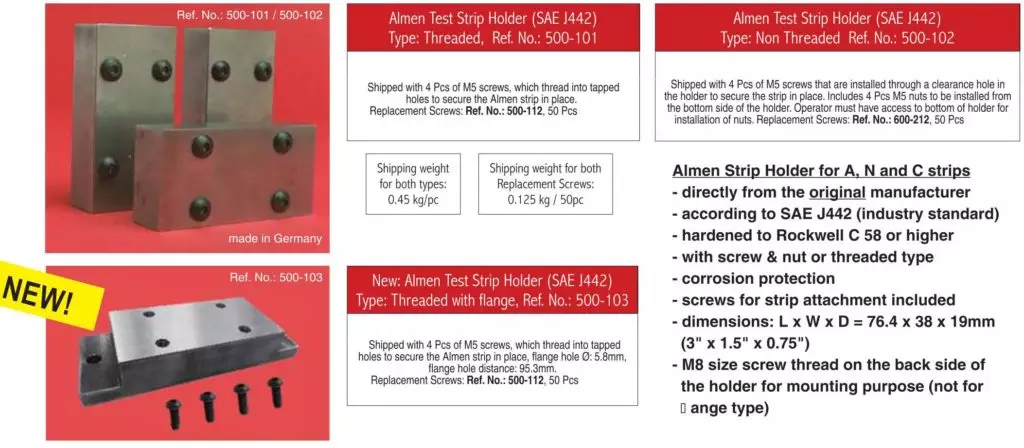

Almen Strip Holder for A, N, AND C strips

Almen Strip Holder for A, N AND C strips

• Directly from the original manufacturer

• According to SAE J442 (industry standard)

• Hardened to Rockwell C 58 or higher

• With screw & nut or threaded type

• Corrosion protection

• Screws for strip attachment included

• Dimensions: L x W x D=76.4 x38 x 19mm (3” x 1.5” x 0.75”)

• M8 size screw thread on the back side of the holder for mounting purpose (not for range type)

Type	Ref.No.
Almen Strip Holder for Internal Peening (IN-19),excluding Replacement Blocks	900 000

Type		Ref.No.
Replacement Block available in Sizes: 02.5mm,3,3.5,4,4.5,5,5.5,6,6.5,7,7.5,8,8.5,9, 9.5,10,10.5,11,11.5,12,12.5,13,13.5,14,14.5,15, 15.5,16,16.5,17,17.5,18,18.5,019mm	900-0   E.g. Block 02.55mm= 900-025
